MX Four Channel Amplifier

4 CHANNEL POWER AMPLIFIER
2U standard chassis design, four high-power output makes connection configuration easier and simpler
Original imported Toshiba power amplifier on the tube, the sound is perfectly reproduced
Pure copper super power toroidal transformer, providing continuous power
Multiple perfect protection circuits let you have faith in every demanding performance
Intelligent temperature control cooling system keeps working at all times
The sound field is broad and broad, and it is full of domineering. It can be said that it is strong and does not lose its charm.

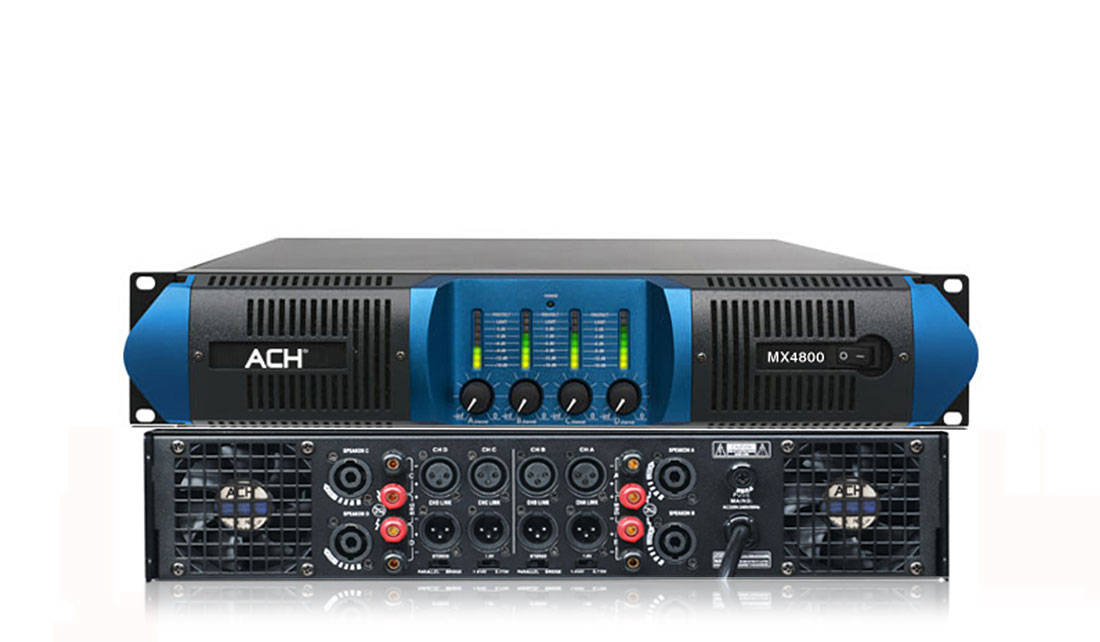

Model MX4800
8Ω Stereo output 4 x 800W
4Ω Stereo output 4 x 1200W
8Ω Bridged mono output 4 x2400W
Output circuit Class H
Frequency response 10Hz-30kHz ±1dB
Input sensitivity 0.775V/1.0v/1.4v
Input resistance

balance 20KΩ
unbalanced 10K

Crosstalk ≥65dB rated power 8Ω 1KHz
Signal to noise ratio ≥101dB
Damping coefficient ≥400
Total harmonic distortion <0.05%@8Ω 1/10 Po
Transient response 22V/u S 25V/u S 25V/u S
Rack space 2U
Size (width × height × depth) 650×585×158mm
Net Weight 30KG
  32.5KG
