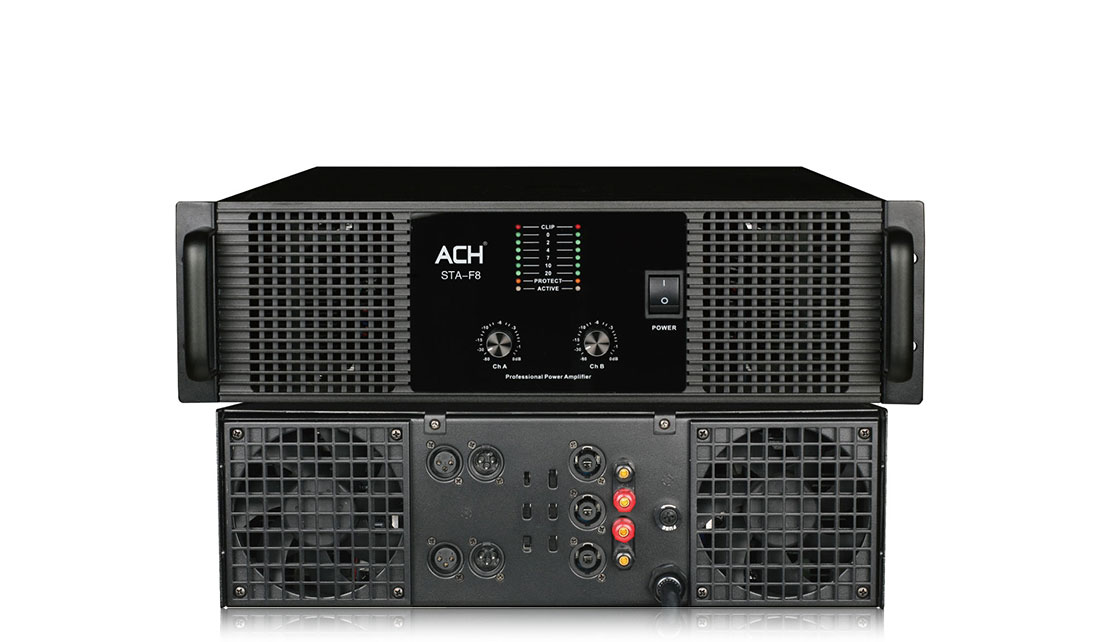

STA series professional amplifier
Designed for stage engineering, the STA Series amplifiers are the first choice for professionals, whether it's a large-scale mobile show or a fixed installation.

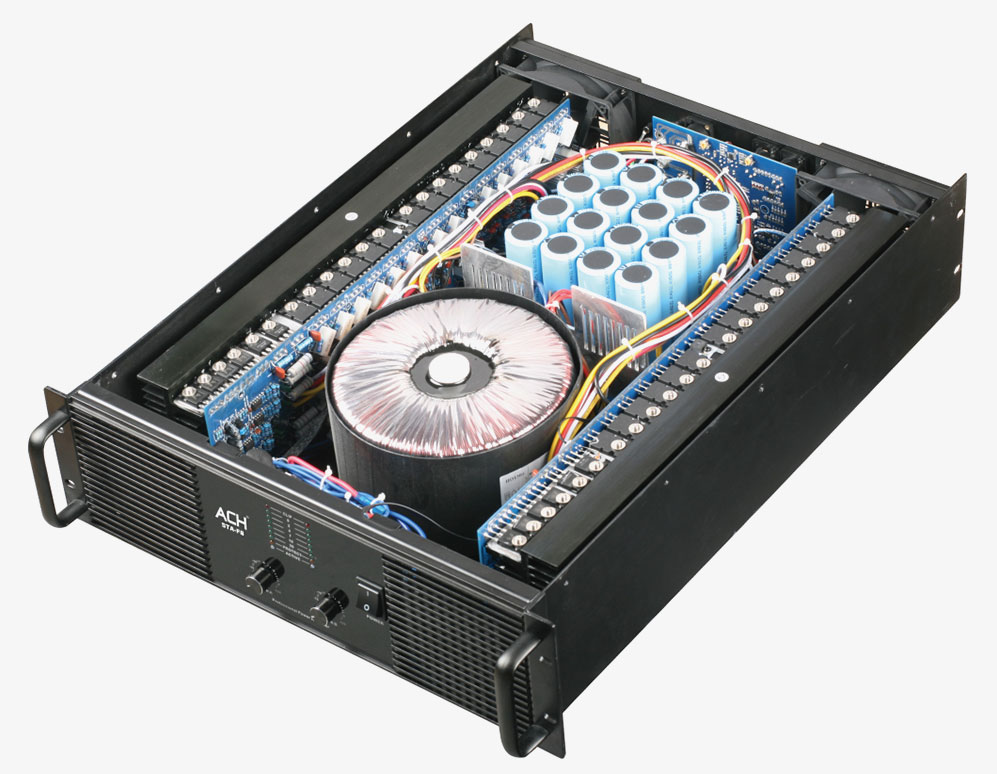

The use of a three-level power supply circuit improves the efficiency of the power amplifier, reduces the operating temperature of the whole machine, and improves the stability of the long-term operation of the whole machine.
This series of amplifiers has accurate resolution of sound, clear high frequency response and strong low frequency dynamics.
Used in medium and large stadiums, stage, theater, dance halls and performing arts bars.
MODEL | STA-F8 |
Stereo output power 8Ω Stereo Power 8Ω | 1750Wx2 |
Stereo output power 4Ω Stereo Power 4Ω | 2850Wx2 |
Stereo output power 2Ω Stereo Power 2Ω | 3500Wx2 |
Frequency Response | 170MV |
THD | ﹤0.03% 8Ω1KHz |
S/N Ratio | 20Hz~20KHz/>80dB |
lnput lmpedance | 20KΩ(Balanced)/10KΩ(Unbalanced) |
Input Sensitivity | ﹤0.775V/ 1.0V/1.4V |
Height | 3U |
Dimensions | 770MM×588MM×210MM |
weight: | 48.5kg |
