PRODUCTS SHOW
[We know that every work product will be reflected in the quality of the product, so we are meticulous]

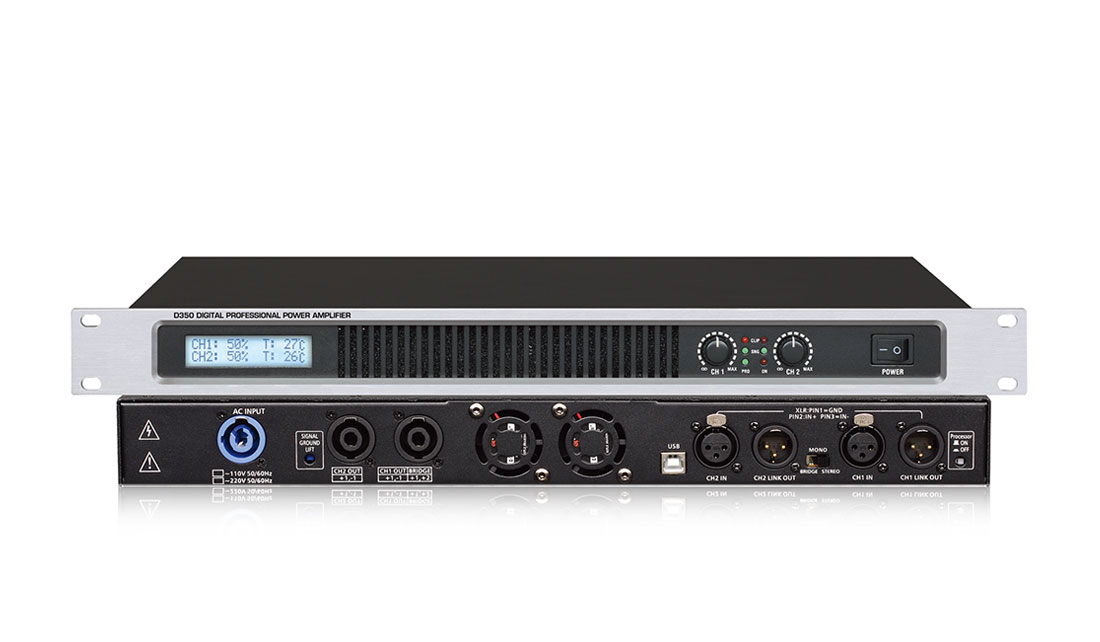

A Series Digital amplifier

A Sseries Digital Amplifier
A series of digital power amplifiers and other products in the commercial series integrate unified solutions for large shopping malls, conference halls,
Commercial places such as transportation hubs.
Adopts the most advanced high-efficiency switching power supply (SMPS) and Class D power amplifier line (CLASS D)
And design.
High-quality porous heat sink with patented design for normal low temperature operation in all kinds of harsh environments
The switching power supply transformer adopts the imported Teflon high temperature line to ensure the normal and efficient operation of the transformer inside at high temperature.
A variety of sensitivity and compression modes are available for selection.
A full set of protection features to ensure that the product works in an orderly manner.



Model A2250 A2350 A2650 A2750
Stereo output power 8ΩStereo Power 8Ω 250Wx2 350Wx2 650Wx2 750Wx2
Stereo output power 4ΩStereo Power 4Ω 450Wx2 600Wx2 1050Wx2 1200Wx2
Stereo output power 2ΩStereo Power 2Ω 650Wx2 800Wx2 1350Wx2 1500Wx2
Frequency Response 170MV
THD ﹤0.03% 8Ω1KHz
S/N Ratio 20Hz~20KHz/>80dB
lnput lmpedance 20KΩ(Balanced)/10KΩ(Unbalanced)
Input Sensitivity ﹤0.775V/ 1.0V/1.4V
Height 1U
Dimensions 482x343x45
Weight 13kg 13kg 15kg 15kg
